ELECFREAKS Pico:ed V2 Board
Compatible with most micro:bit accessories including the Makey:bit
$25.00
/
Shipping calculated at checkout.
Suggested Add-ons

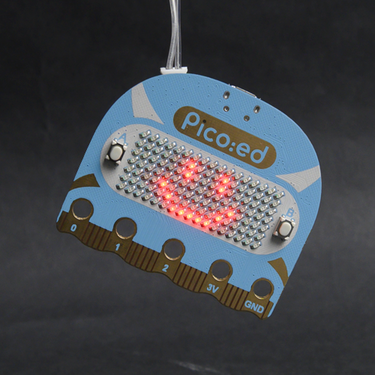

The Pico:ed V2 is a development board based on Raspberry Pi RP2040 MCU. It uses a dual-core Arm Cortex-M0+ processor with 264KB RAM, and has the form factor of a micro:bit, try it with a Makey:bit!
FEATURES
- Designed by Raspberry Pi, the RP2040 chip features a dual-core Arm Cortex-M0+ processor with 264kB internal RAM and supports up to 16MB of off-chip flash
- USB & Battery Connector
- Power status LED and USB data transfer LED
- 7*17 LED fully programmable display, show text, numbers, and images
- Bootsel & Reset Button
- 25-pin notched edge connector
- Onboard Buzzer
- Two Programmable Buttons
- Compatible with most micro:bit accessories
- Use MicroBlocks for graphical programming
INPUT BUTTONS & LOGO INDICATOR
Two Programmable buttons and Logo LED.
EDGE CONNECTOR
Wavy edge connector to connect to devices without soldering.
RP2040
Designed by Raspberry Pi, RP2040 features a dual-core Arm Cortex-M0+ processor with 264kB internal RAM and support for up to 16MB of off-chip flash.
SPECIFICATIONS
| Item | Parameter |
| Mcu | RP2040 |
| SRAM | 264KB |
| Flash | 2MB |
| Programmable IO | 19 Pcs |
| Onboard Device | Buzzer, LED, 7x17 LED matrix, 2 * Button |
| Program Language | Micropython， C++ |
| Size | About 52mm X 42mm |
| Net Weight | 10g |
